Products Center

  Your Location：Home > Products Center > Products Center
  • Functional Description
  • Specifications
  • Applications

技術規格 Technical Parameter
技術分類Technical Classification項目規格Item參數Parameter
電氣性能Electrical Properties供電電壓AC90-260V
最大功耗??????????? Max Power Consumption7.5W
光學性能??????????? Optical Properties光源組成?????????? Lamp60PCS(SMD3014)
光通量???????? Luminous Flux480lm
顯色指數Color Rendering IndexCRI﹥75?
色溫Color Temperature2800-7000K?
光效Luminous Efficacy64m/W
光束角Beam Angle120°
光通維持率Luminous maintenance rate50000hour (﹫70%)

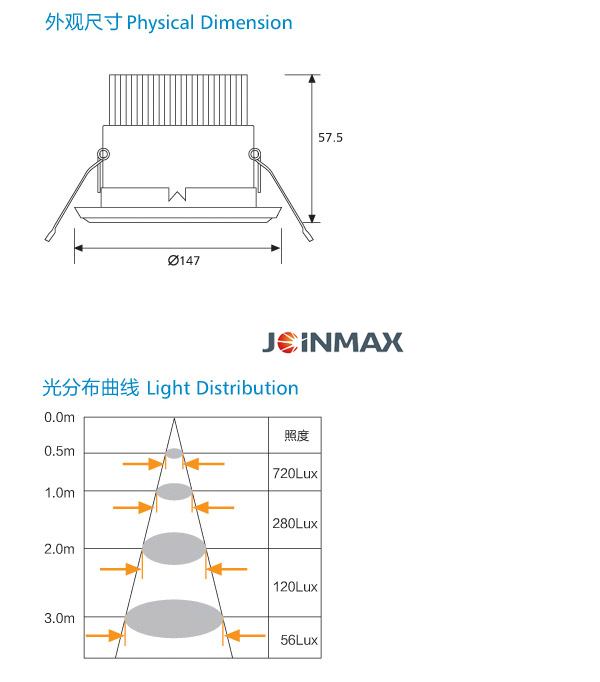

結構性能Structure尺寸（長*寬*高）Dimension (L*W*H)??147*H57.5mm????????
開孔尺寸?115mm
重量Weight350g
?燈體材料?????? Material車鋁???????? Aluminium
表面顏色??????? Surface Color白色White
防護等級???? Protection RatingIP42
工作溫度?????????? Work Temperature-20°C-40°C
工作環境濕度?????? Work Humidity0-90%
使用環境?????????? Work Environment干燥/潮濕????? Dry/Wet?
安全性能Safety　CLASS Ⅱ
型號對照表 Model List
供電方式????? Input Voltage發光顏色 ?LED Color產品編號 Model
DC90-260V2800-7000KJZ03-206001-019
?????????????????
